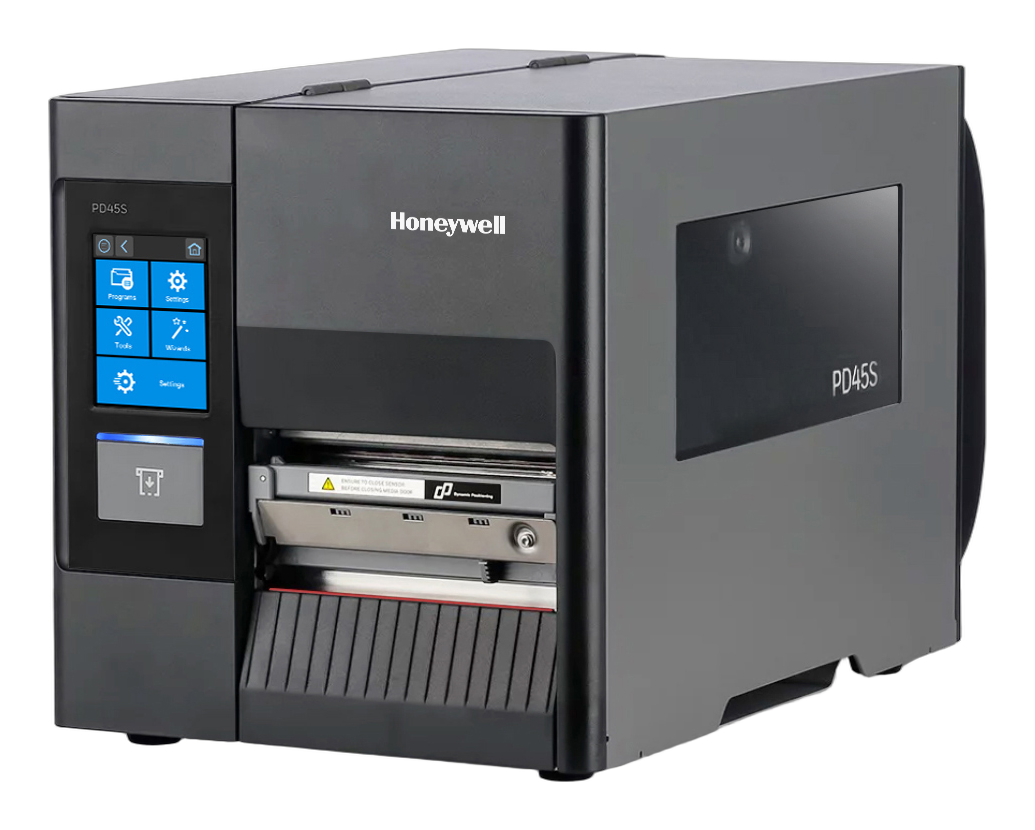

Honeywell PD45S 4" 203dpi TT/DT Printer USB/ETH/BT, 2.3" Colour LCD
Honeywell PD45S 4" 203dpi TT/DT Printer USB/ETH/BT, 2.3" Colour LCD
- MCC Code
- 453802
- Vendor Code
- PD45S0C0010000200
Couldn't load pickup availability
FREE NZ phone & email tech support
Description
Description
The Honeywell PD45S is a rugged 203 dpi industrial tabletop label printer engineered for manufacturing, retail, transportation & logistics, healthcare, and government workflows. Its all-metal frame, glass status window, and side-loading design deliver reliable 24/7 duty, while dual-sensor dynamic positioning technology maintains ±0.5 mm vertical accuracy on labels as small as 5 mm.
- Supports both direct thermal and thermal transfer printing at up to 250 mm/s
- 108 mm max print width with 114 mm media capacity and 203.2 mm rolls on 25.4 or 76 mm cores
- Standard USB, Ethernet and RS-232; optional Wi-Fi, Parallel, GPIO and dual serial
- Multi-language emulation: Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL-II) and DPL
| Brand | Honeywell |
|---|---|
| Connectivity | BT/ETH/USB |
| Resolution | 203 dpi |
| Maximum Print Width | 108 |
| Maximum Print Speed | 250 mm per second |
| Media Width | 20 mm to 114 mm |
| Maximum Media Roll Size | 203.2 mm O.D. on 25.4 mm or 76 mm I.D. core |
| Media Thickness | 0.076 mm to 0.255 mm |
| Media Types | Non-continuous label, black-mark, tag, guide-hole, notch, continuous label |
| Operating Temperature | 5°C to 40°C |
| Compatible software | BarTender technical specificationsOpens in a new window. |
| Spec sheet | Download PDFOpens in a new tab |
